| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | BOZHONG |
| إصدار الشهادات: | ISO / TUV / DNV |
| رقم الموديل: | 444 |
| الحد الأدنى لكمية: | قابل للتفاوض |
| الأسعار: | negotiable |
| تفاصيل التغليف: | التعبئة ابحار أو كما هو مطلوب |
| وقت التسليم: | 3--10days |
| شروط الدفع: | L/C, T/T, ويسترن يونيون, MoneyGram |
| القدرة على العرض: | 10000ton / الشهر |
| وصف: | 444 أنبوب / أنبوب فولاذي مقاوم للصدأ | صف دراسي: | 444 |
|---|---|---|---|
| شكل: | دائري أو صقر أو على النحو المطلوب | القطر الخارجي: | من 6 إلى 720 مم ، 1/8 إلى 36 بوصة |
| سمك الحائط: | 0.89 إلى 60 ملم | طول: | 1 ~ 14 مترا أو حسب الطلب |
| تسليط الضوء: | stainless steel welded tube,stainless steel seamless pipe,stainless steel seamless pipe |
||

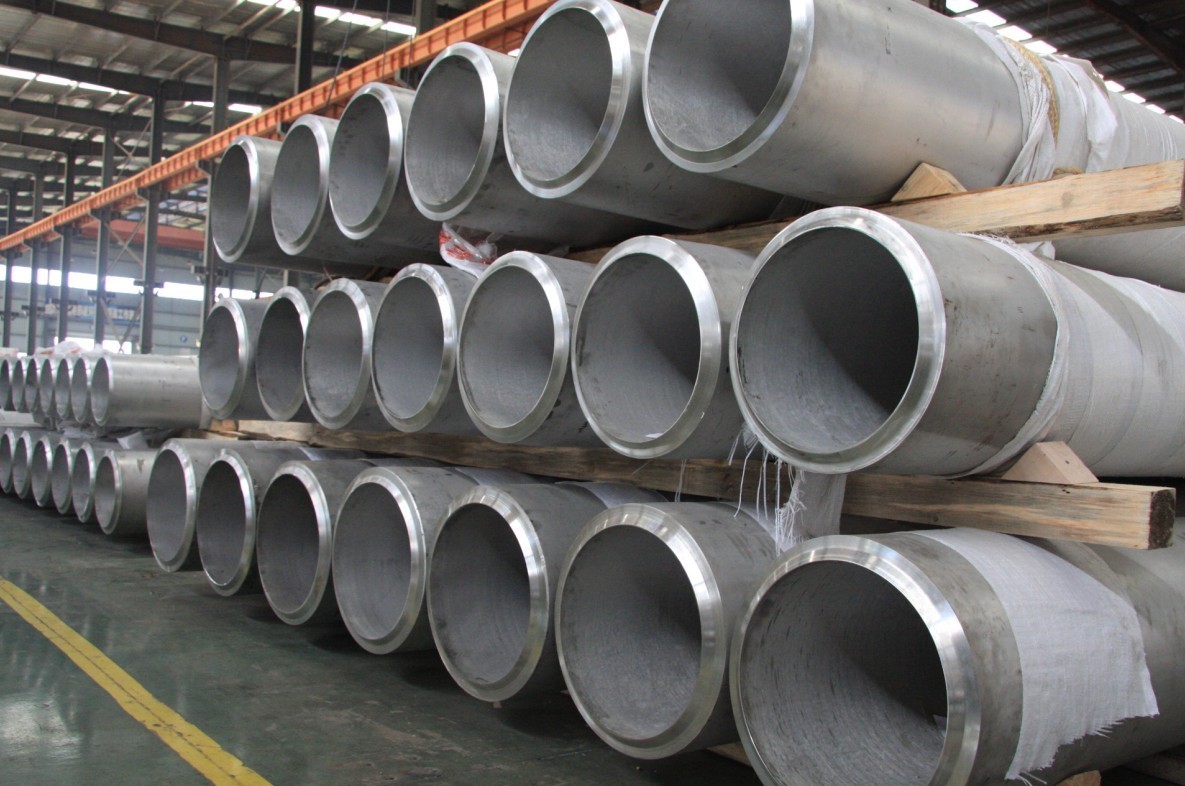

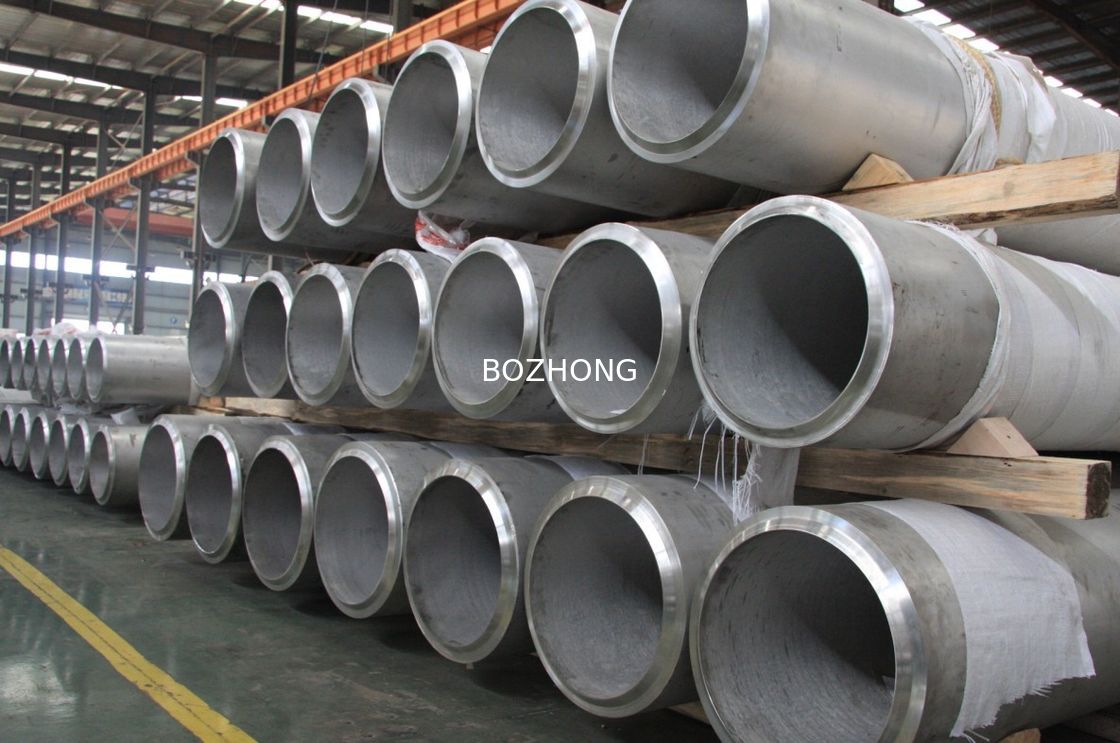

Bozhong Group is the professional manufacturer of 400 series stainless steel seamless pipes and Tubes. Stainles steel 400 series pipes are of high hardness and strength compared with 300 series.This Feature determines the 400 series pipe need special technology in the production.Usually the production period of 400 seroes pipe need 30-35 days.
Standard: AISI, ASTM, DIN, EN, GB and JIS ASTM A268
Materials:
400series:
409,409L,410 420,420J1,420J2,...
430,431,444,446,440A,440B,440C...
Production process: cold drawing and precision rolling
Outer diameter: 6 to 720mm, 1/8 to 36 inches
Wall Thickness: 0.89 to 60mm
Length: 1~14 meters or customized
Applications: seawater environment, petrochemical, fertilizer, oil refining, oil and natural gas, light/food, paper pulp and making paper, energy and environmental-protection industry
Packing: plastic polybag, wooden case or bundle
With wide experience and expertise, Bozhong Group is one of the leading 409 410 420 446 ferritic pipe tube manufacturers and suppliers. We have hundreds of high-qualified workers at your service. Please rest assured to get the competitive price 409 410 420 446 ferritic pipe tube for sale with us.
| Type | Grade | Grade | Chemical Component % | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |||
| 409 | 3cr12 | ≤0.08 | 10.50-11.75 | ≤0.5 | ≤1.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti(6C-0.75%) | |
| 409L | 3cr12 | ≤0.03 | 10.50-11.75 | ≤0.5 | ≤1.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti(6C-0.75%) | |
| 410L | 00Cr12 | ≤0.030 | 11.00-13.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 430 | 1Cr17 | ≤0.12 | 16.00-18.00 | 3) | ≤1.25 | ≤0.035 | ≤0.030 | - | ≤0.75 | - | - | - | |
| 430F | Y1Cr17 | ≤0.12 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 434 | 1Cr17Mo | ≤0.12 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.75-1.25 | ≤1.00 | - | - | - | |
| 447J1 | 00Cr30Mo2 | ≤0.010 | 28.50-32.00 | - | ≤0.40 | ≤0.035 | ≤0.030 | 1.50-2.50 | ≤0.40 | - | ≤0.015 | - | |
| XM27 | 00Cr27Mo | ≤0.010 | 25.00-27.50 | - | ≤0.40 | ≤0.035 | ≤0.030 | 0.75-1.50 | ≤0.40 | - | ≤0.015 | - | |
| Martensite stainless steel | 403 | 1Cr12 | ≤0.15 | 11.50-13.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤0.50 | - | - | - |
| 410 | 1Cr13 | ≤0.15 | 11.50-13.50 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 405 | 0Cr13 | ≤0.08 | 11.50-13.50 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 416 | Y1Cr13 | ≤0.15 | 12.00-14.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 410J1 | 1Cr13Mo | ≤0.08-0.18 | 11.50-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.30-0.60 | ≤0.60 | - | - | - | |
| 420J1 | 2Cr13 | 0.16-0.25 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 420F | Y3Cr13 | 0.26-0.40 | 12.00-14.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 1) | ≤1.00 | - | - | - | |
| 3Cr13Mo | 0.28-0.35 | 12.00-14.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 0.50-1.00 | ≤0.80 | - | - | - | ||
| 4Cr13 | 0.36-0.45 | 12.00-14.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | - | ≤0.60 | - | - | - | ||
| 431 | 1Cr17Ni2 | 0.11-0.17 | 16.00-18.00 | 1.50-2.50 | ≤0.80 | ≤0.035 | ≤0.030 | - | ≤0.80 | - | - | - | |
| 440A | 7Cr17 | 0.60-0.75 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 440B | 8Cr17 | 0.75-0.95 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 9Cr18 | 0.90-1.00 | 17.00-19.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 4) | ≤0.80 | - | - | - | ||
| 440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | 3) | ≤1.00 | ≤0.035 | ≤0.030 | 4) | ≤1.00 | - | - | - | |
| 440F | Y11Cr17 | 0.95-1.20 | 16.00-18.00 | 3) | ≤1.25 | ≤0.035 | ≥0.15 | 4) | ≤1.00 | - | - | - | |
| 9Cr18Mo | 0.95-1.10 | 16.00-18.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 0.40-0.70 | ≤0.80 | - | - | - | ||
| 9Cr18MoV | 0.85-0.95 | 17.00-19.00 | 3) | ≤0.80 | ≤0.035 | ≤0.030 | 1.00-1.30 | ≤0.80 | - | - | V0.07-0.12 | ||
